MAGIC™ — Built by Experts Who Truly Understand Jewelry Manufacturing

Jewelry Polishing Machine
- MAGIC-PM900

The MAGIC-PM900 is an enclosed buffing and polishing machine optimized for professional jewelry finishing. By combining an integrated dust-control system, ergonomic design for extended use, powerful polishing performance, and a wide range of operator-friendly features, the PM900 helps make jewelry finishing faster, cleaner, and more efficient.

Key Features of the MAGIC-PM900 Jewelry Polishing Machine

Enclosed polishing chamber for effective control of airborne dust and polishing debris
Powerful 1/2 HP motor for stable, continuous polishing performance
Ergonomic design developed for extended buffing and polishing sessions
Integrated lighting, dust collection, magnification, foot-pedal control, and workflow controls for greater convenience and efficiency
Designed around the workflow of experienced jewelers to create a polishing environment optimized for professional jewelry production

◆ The MAGIC-PM900 transforms conventional jewelry polishing into a cleaner, safer, and faster professional finishing workflow.

Product Inquiry

Video

Manual

Designed for Professional Jewelry Production

The MAGIC-PM900 is a professional jewelry polishing machine engineered to improve both finishing efficiency and operator comfort. It combines the powerful torque of a 1/2 HP buffing motor, an enclosed chamber with a high-performance dust collection system, an ergonomic design that helps reduce fatigue during extended polishing sessions, and a range of workflow-enhancing features for faster, more convenient buffing and polishing.

Designed around the demands of real jewelry production, the PM900 helps reduce finishing time, streamline workflow, and improve overall productivity.

Recommended Applications:

Surface Finishing for Jewelry & Small Metal Parts
Buffing and polishing of gold, silver, brass, copper, aluminum, stainless steel, and other metal materials.
Removing Sanding & Finishing Marks
Removes fine scratches, sanding marks, and surface imperfections remaining after casting cleanup, filing, grinding, or sanding.
Multi-Stage Buffing & Polishing
Supports progressive finishing processes from intermediate polishing to final high-gloss finishing using the appropriate buffing wheels and compounds.
Post-Repair Finish Restoration
Restores surface finish and luster to areas affected by ring resizing, welding, repair, or other jewelry work.

Features for Faster, Safer Jewelry Polishing

Powerful Polishing Performance

1/2 HP high-torque motor for stable, consistent polishing performance
Supports buffing wheels up to 7 inches
Dual spindle design for quick and convenient workflow changes
Continuously variable RPM control for precise buffing speed adjustment
Torque Boost delivers strong torque even at low RPM for demanding polishing work

Designed for a Safer Working Environment

Enclosed polishing chamber helps minimize the spread of polishing dust and debris
Tempered glass viewing window provides a clear, protected view of the work area

Convenient Features for Faster Jewelry Finishing

Built-in illuminated magnifier for close inspection of surface condition and finishing quality
Integrated control switches for convenient operation
Foot-pedal motor control for instant speed adjustment while polishing

Enhanced Dust Collection for a Cleaner Workspace

Floor-level dust extraction intakes capture residual dust and debris inside the chamber
Adjustable left/right suction control directs extraction power to the side where it is needed most
Dedicated dust collector connection port
Compatible with a choice of high-performance external dust collection systems
Two-stage filtration system combining a filter bag and HEPA filter for effective dust recovery and fine-particle filtration

Designed with the Know-How of Experienced Jewelers

Drawing on the hands-on experience of seasoned jewelry professionals, the MAGIC-PM900 has been carefully engineered around real polishing workflows — from the position and height of the buffing motor and the size of the working area to motor torque and speed control.

Every detail is designed to create a more comfortable and efficient polishing environment, helping reduce operator fatigue during repetitive, extended work while improving ease of use, workflow efficiency, and productivity.

The MAGIC-PM900 is a jewelry polishing machine created by professionals who understand jewelry manufacturing.

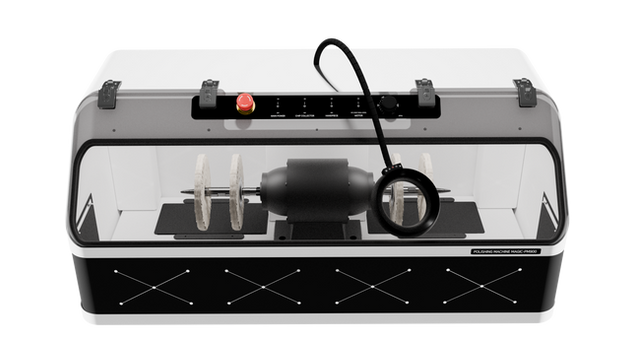

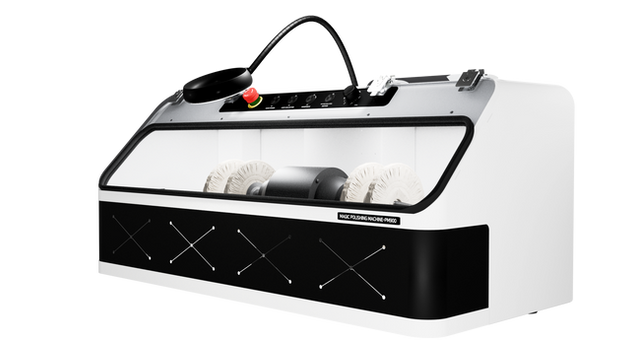

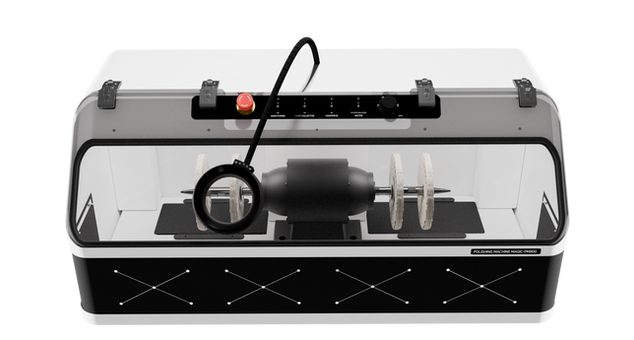

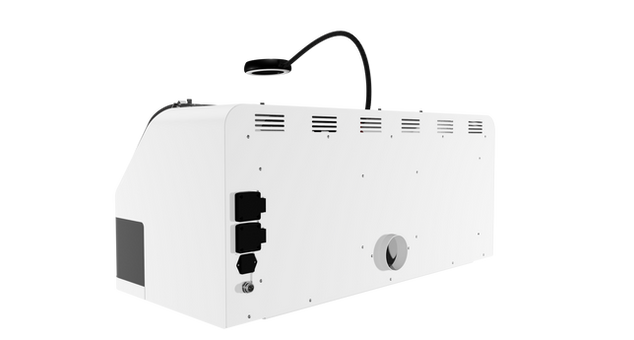

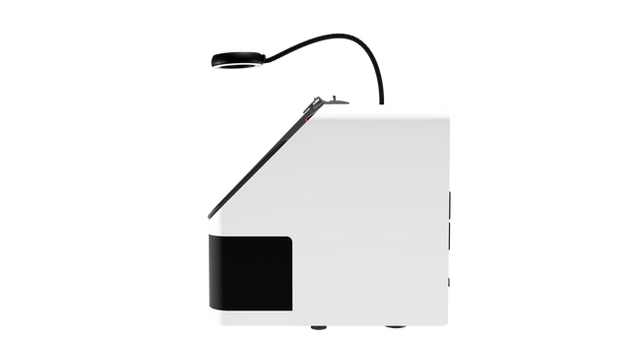

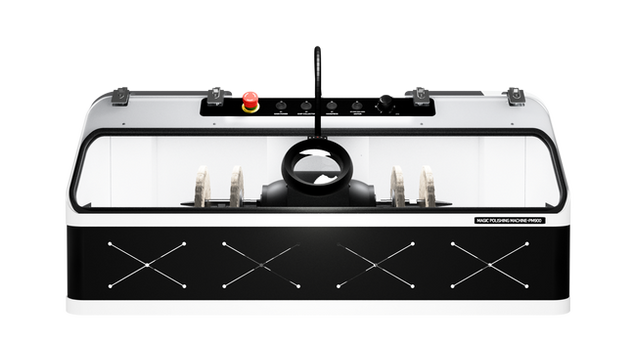

MAGIC-PM900 Parts & Key Features

A Must-Have for Jewelry Makers

Faster Polishing. Safer Workspace. Easier Operation.

■ Key Applications

Surface preparation after casting and pre-finishing processes
Removal of fine scratches and machining marks
Intermediate polishing
Final high-gloss polishing
Localized finish restoration after welding, repair, or ring sizing
Polishing to remove surface oxidation and tarnish
Consistent final finishing for repeat-production jewelry

■ Items Suitable for Buffing & Polishing

Rings
Chains & Necklaces
Pendants & Charms
Earrings
Bracelets & Bangles
Brooches & Medals
Jewelry Components & Parts
Various Other Small Metal Items

Key Product Features

1/2 HP High-Torque Motor with Torque Boost

Stable, Powerful Polishing Performance with High-Torque Motor Power

1/2 HP high-torque motor delivers stable polishing performance even under heavy loads
Torque Boost maintains strong polishing power even at low RPM
High-performance inverter control ensures smooth, stable motor performance
Continuously variable RPM control provides precise and flexible speed adjustment

Dual Spindles for Faster Workflow Changes

Faster Workflow with Dual Spindles & Four Buffing Wheels

Use different buffing wheel combinations to move seamlessly through cutting, intermediate polishing, pre-polishing, and final polishing
Supports buffing wheels up to 7 inches
Tapered spindles allow quick wheel changes, significantly reducing setup time between polishing processes
Minimizes downtime for wheel changes and process transitions, enabling a faster and more efficient polishing workflow

Optimized for Professional Jewelry Work

Versatile Performance for a Wide Range of Jewelry Buffing and Polishing Applications

Dual spindles allow quick and convenient buff changes to suit each polishing stage
1/2 HP high-torque motor maintains stable performance even under heavy polishing loads
Continuously variable speed control enables precise RPM adjustment for different materials and finishing tasks
Foot-pedal speed control allows real-time RPM adjustment while polishing
Supports standard buffing wheels up to 7 inches for versatile jewelry finishing applications
Scratch-resistant tempered glass provides a clear view of the work area

Control Panel & Operating Controls

Easy Control of Key Functions from the Front Panel

Emergency stop switch for immediate machine shutdown
Continuously variable speed control for precise buffing wheel RPM adjustment
Switch between Continuous ON and Foot Pedal Control modes
Dedicated power switches for the dust collector and handpiece or other auxiliary devices

Instant Quality Inspection with an Illuminated Dual-Lens Magnifier

5× / 10× Dual Lenses for Detailed Inspection

Built-in illumination provides a clearer view of surface condition and polishing quality
Adjustable color temperature helps optimize visibility for different jewelry colors and materials
Flexible gooseneck arm allows easy positioning of the magnifier exactly where needed
Enables immediate inspection during buffing and polishing, helping improve finishing accuracy and workflow efficiency

Instant Speed Control with a Foot Pedal

MAGIC-PM900_Footpedal_Buffing_Motor_Control

Foot-Pedal ON/OFF Control for the Buffing Motor

Instantly adjust buffing wheel speed while working
Quickly increase or decrease speed to match the polishing task
Ideal for precision polishing that requires fine, responsive speed control

Durable Leather Hand-Opening Cover

Natural Leather-Based Material for Reliable Durability in Repeated Use

Double-sided finish helps reduce dust and contaminant buildup for easier surface maintenance
Soft and flexible material reduces contact pressure on the hands and arms for greater comfort
Maintains comfortable usability during extended, repetitive polishing work

Ergonomic Design for Extended Polishing Sessions

Designed to Reduce Fatigue and Support More Comfortable, Efficient Polishing

Optimized motor position, working height, and viewing-window angle help maintain a comfortable working posture
Bright interior lighting improves visibility and helps reduce eye strain
Low-vibration design helps minimize operator fatigue during extended use
Provides a spacious work area and stable, comfortable usability for repetitive polishing tasks

Cleaner, More Comfortable Polishing Environment

Reduces Airborne Dust for a Cleaner and More Comfortable Workspace

Enclosed polishing chamber helps minimize the spread of dust generated during buffing and polishing
Helps reduce operator exposure to fine airborne particles
Adjustable left/right suction control concentrates extraction power on the side where it is needed most
Modular dust collection design allows flexible selection of dust collection solutions to match different workspace requirements and performance needs
Optimized internal airflow effectively captures dust generated during polishing
Two-stage filtration system with a bag filter + HEPA filter enhances dust collection and fine-particle filtration
(HEPA filtration efficiency: ≥99.97% for particles at 0.3 μm)

Premium & Compact Design

Refined Styling and Space-Efficient Design for Modern Jewelry Workspaces

Premium design created to meet the expectations of professional jewelers
Compact footprint provides excellent usability even in limited workspaces
Clean, modern appearance enhances a professional jewelry workshop environment

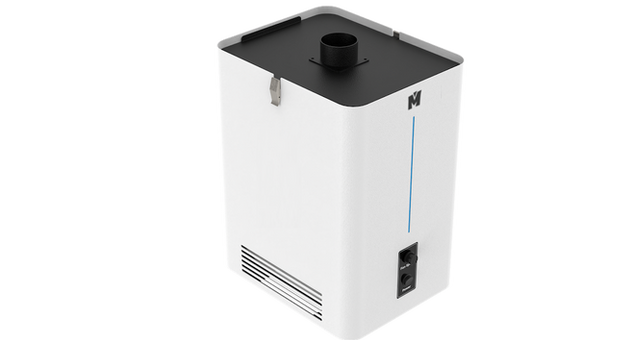

Key Features of the Dust Collector

The MAGIC-DC500 is an essential dust collection system for creating a cleaner and more comfortable jewelry polishing environment. Equipped with a powerful 500W dust collection motor and a two-stage filtration system combining a bag filter and HEPA filter, it delivers enhanced dust recovery and fine-particle filtration while helping minimize airborne dust during polishing operations.

500W High-Power Dust Collection Motor

High-Performance Motor for Powerful Dust Extraction

Variable motor output control allows suction power to be adjusted to suit different working conditions
Maximum motor output: 500W

Primary Filtration of Coarse Particles with a Bag Filter

Easy-to-Replace Bag Filter for First-Stage Dust Collection

Quick and easy bag replacement system for convenient maintenance
Large-capacity filter capable of collecting substantial amounts of polishing dust
Designed to facilitate the recovery of precious metal chips and polishing residue
Bag filter particle rating: 25 μm

Secondary Filtration of Fine Particles with a HEPA Filter

HEPA Filtration for Enhanced Fine-Particle Control

Second-stage filtration captures fine particles to help minimize dust escaping into the workspace
HEPA filtration efficiency: ≥99.97% for particles at 0.3 μm

Why Jewelry Professionals Choose MAGIC Jewelry Polishers

1/2 HP High-Torque Motor with Torque Boost
- Powerful motor torque and Torque Boost deliver strong, stable polishing performance

Optimized for Professional Jewelry Work
- Features including an LED-illuminated dual-lens magnifier, foot-pedal motor control, and dual spindles make jewelry buffing and polishing faster and more convenient

Cleaner, More Comfortable Polishing Environment
- Effectively reduces airborne polishing dust to help create a cleaner and more comfortable workspace

Designed, Manufactured & Supported by Redt
- Backed by Redt’s precision engineering and manufacturing expertise, with reliable customer support and service
